KESS V2.80 EU Red KTag V7.020 Master OBD2 Tuning 4 LED

Overview

The KESS V2.80 EU Red paired with the KTAG V7.020 is engineered for serious ECU work. The EU online red PCB board signifies a premium build, designed for reliability in harsh workshop environments. The system combines the convenience of OBD2 tuning with the depth of TRICORE/BDM access. With four LED indicators, you get rapid, at-a-glance status information during critical ECU operations.

Why this combination stands out

• Premium hardware — Red EU online PCB board with original LPC NXP chip, a robust buzzer, and a high-grade 4-LED display. The construction uses trusted components (Infineon, ON Semiconductor, NXP) for stable power and precise signal handling.
• Expanded mode access — KESS V5.017 reads ECU data directly via OBD2 for most vehicles, while KTAG V7.020 accesses ECU via TRICORE or BDM with dedicated cables, unlocking more thorough tuning opportunities on complex ECUs.
• Broader vehicle reach — While both systems support common protocols, KTAG V7.020 uniquely advances coverage for trucks, tractors, and other heavy-duty platforms, including Toyota Hilux kun26 in some configurations.
• 4 LED hardware display — A clear, real-time visual status readout reduces guesswork during live-tuning procedures and helps you monitor progress without needing a separate software readout.
• Online and unlimited by design — The V2.80/V7.020 pairing emphasizes online capability without token constraints, so you can dedicate time to complex jobs without interruptions.

Key differences you should know

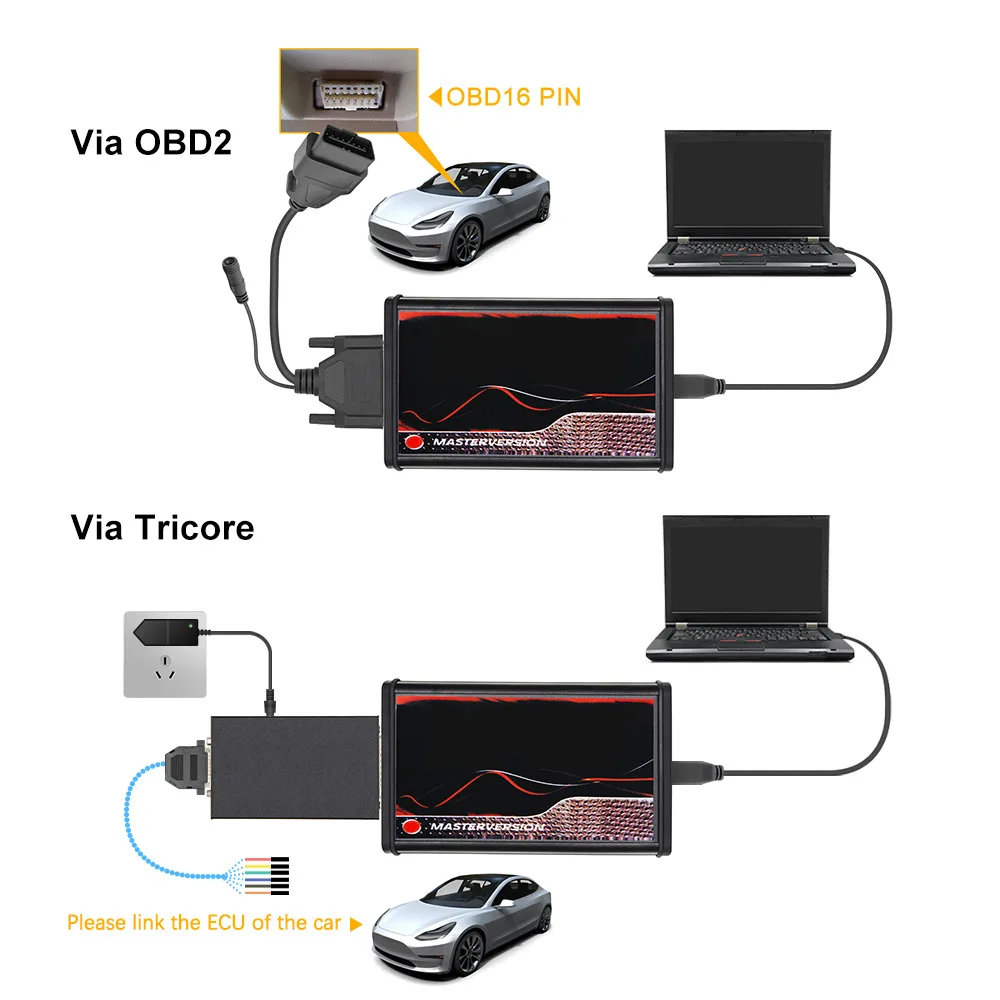

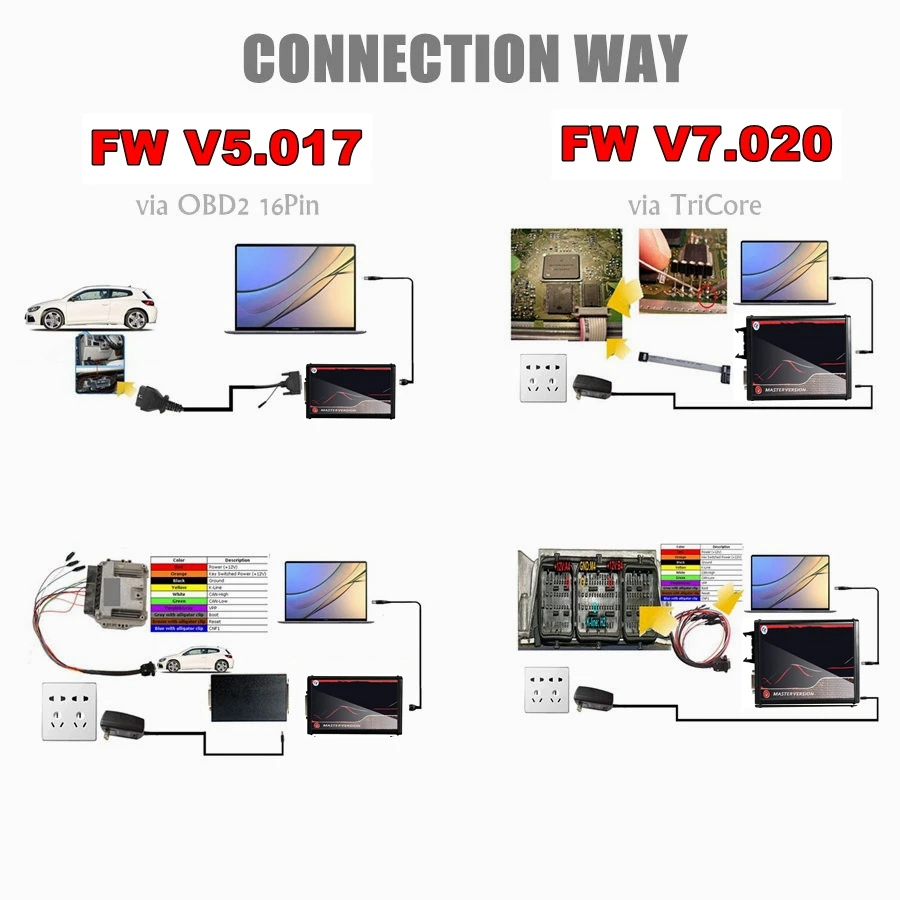

• Connection method — KESS V5.017 uses direct OBD2 connection for ECU read/write. KTAG V7.020 employs TRICORE or BDM with specialized cables and guided software workflows for these modes.
• Vehicle coverage — Both cover a broad range of cars, but KTAG V7.020 excels with heavy-duty applications and certain 24V platforms (tractors, trucks) that are more challenging with KESS alone.
• Target use case — If your workflow centers on 24V trucks and tractors, KTAG V7.020 is the more suitable choice; for quick obo-based tweaks on everyday cars, KESS V5.017 is typically sufficient.

What’s included in the kit

• Full set with Red 3D Logo sticker

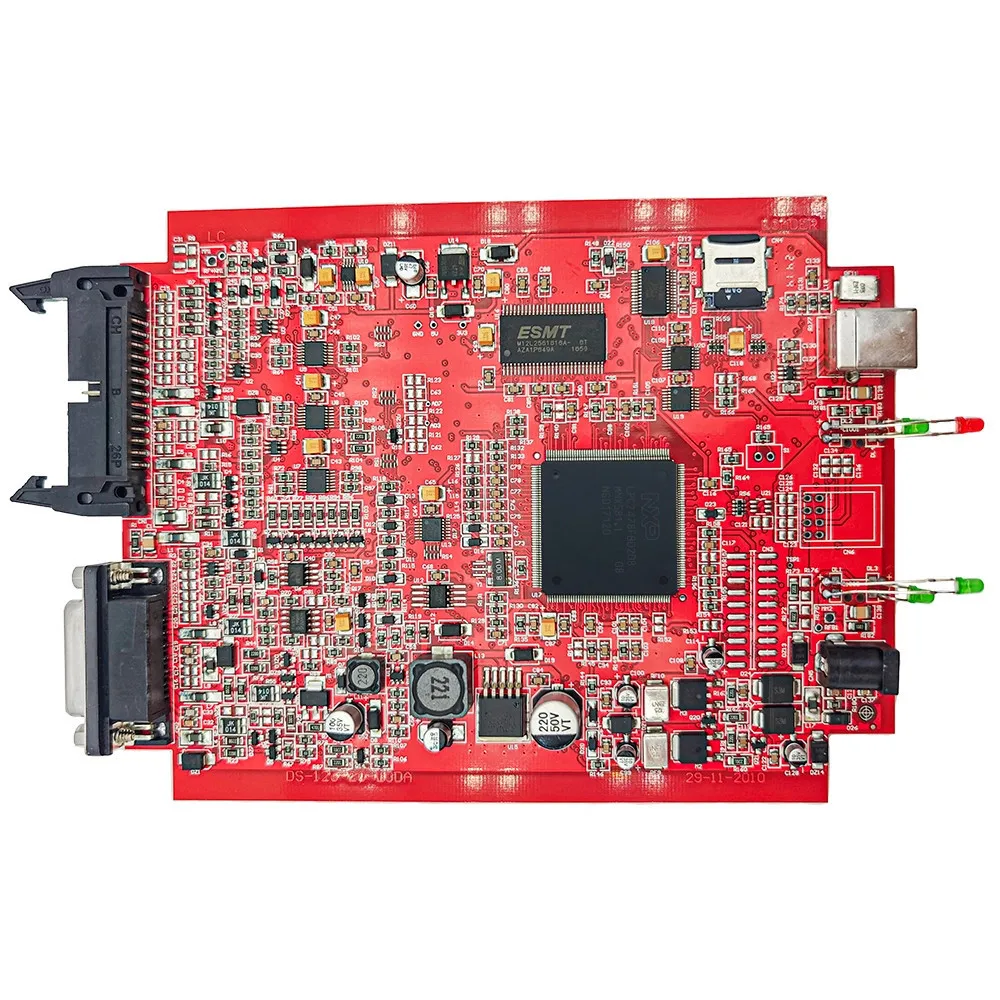

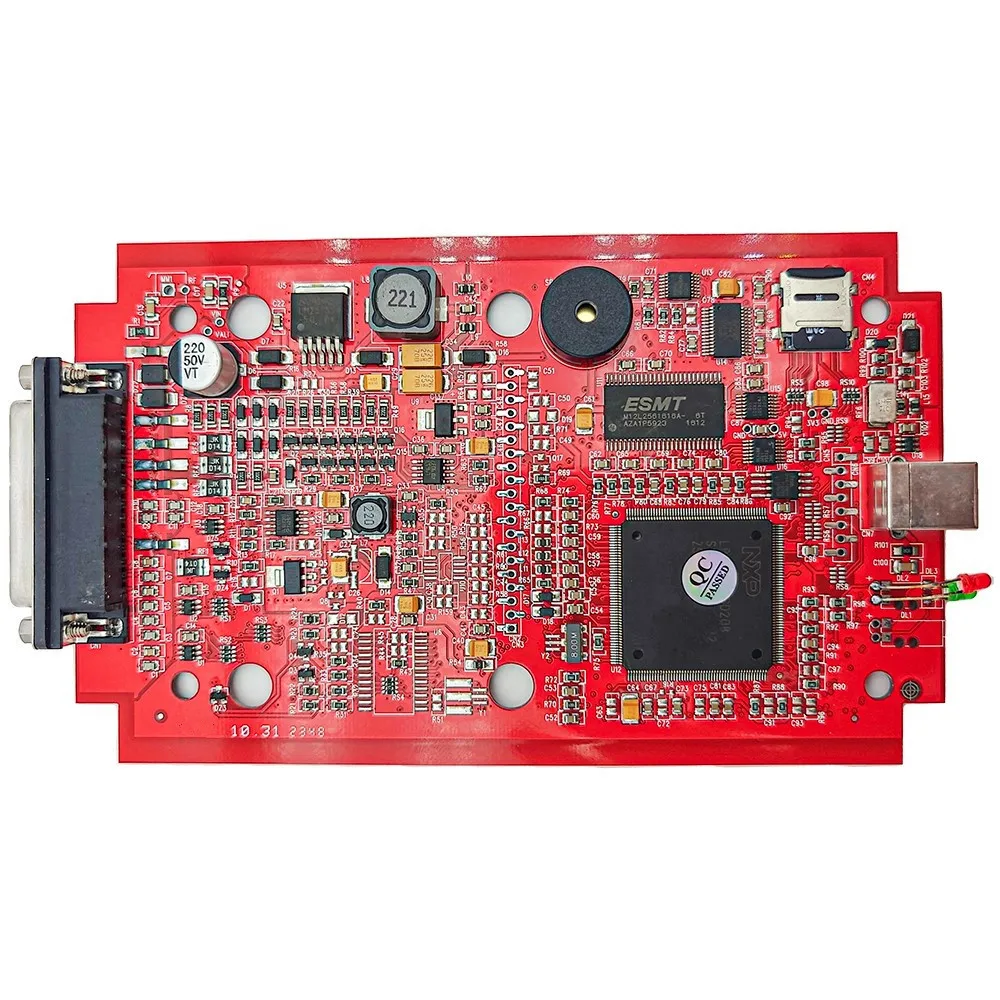

• Red EU Online PCB board
• Original LPC NXP chip
• Buzzer and SD Card

Technical and compatibility highlights

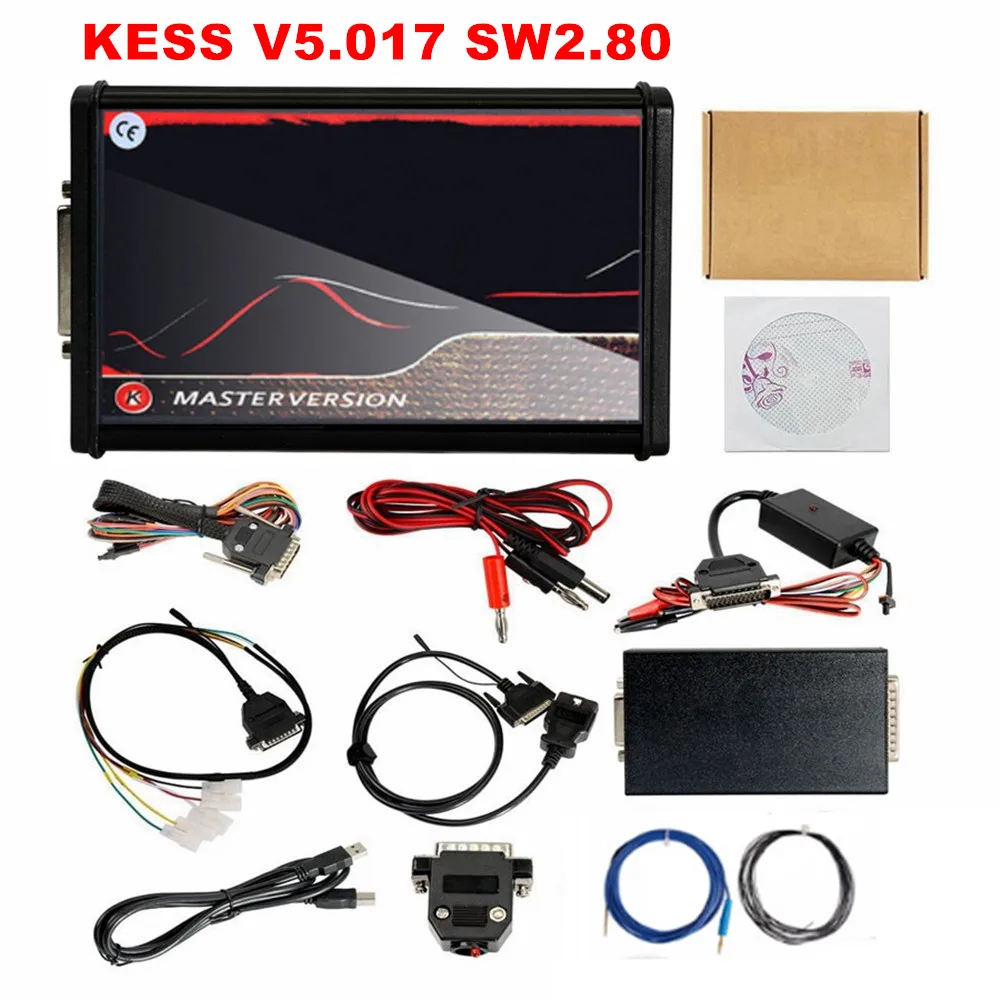

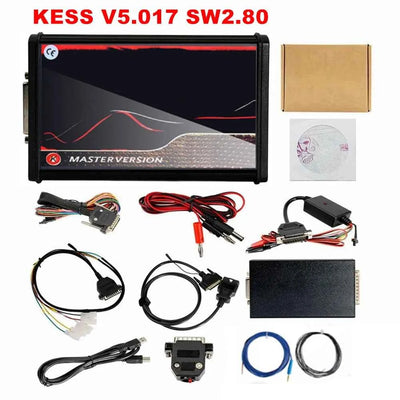

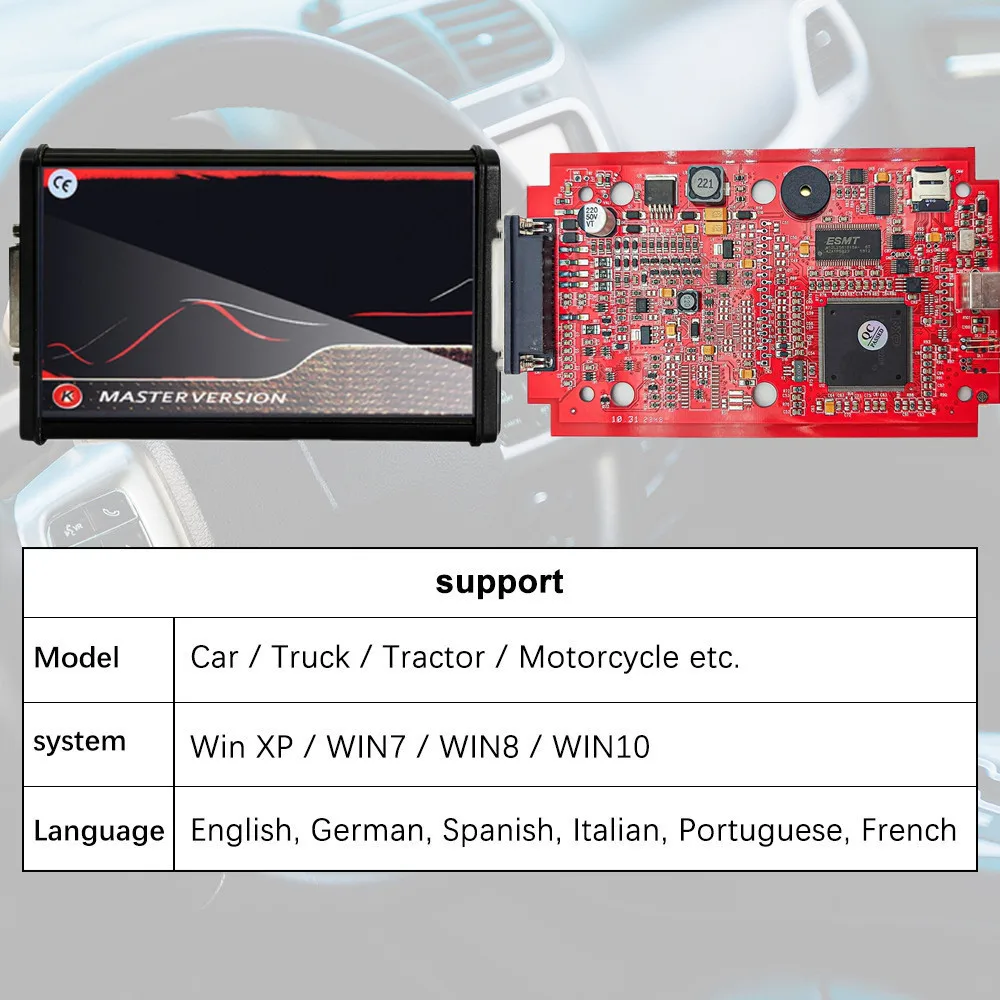

• KESS V5.017 with K-Suite 2.80 — Online version, unlimited tokens, supports cars/trucks/tractors/motorcycles with 12V/24V operation. Includes broad protocol support (including line, KAN, EDC17, MED17, Ford J1850) and multi-language interfaces. Software compatibility spans Windows XP, Windows 7 (32-bit), Windows 8, Windows 10 (64-bit), and Windows 11 (64-bit) in typical setups.

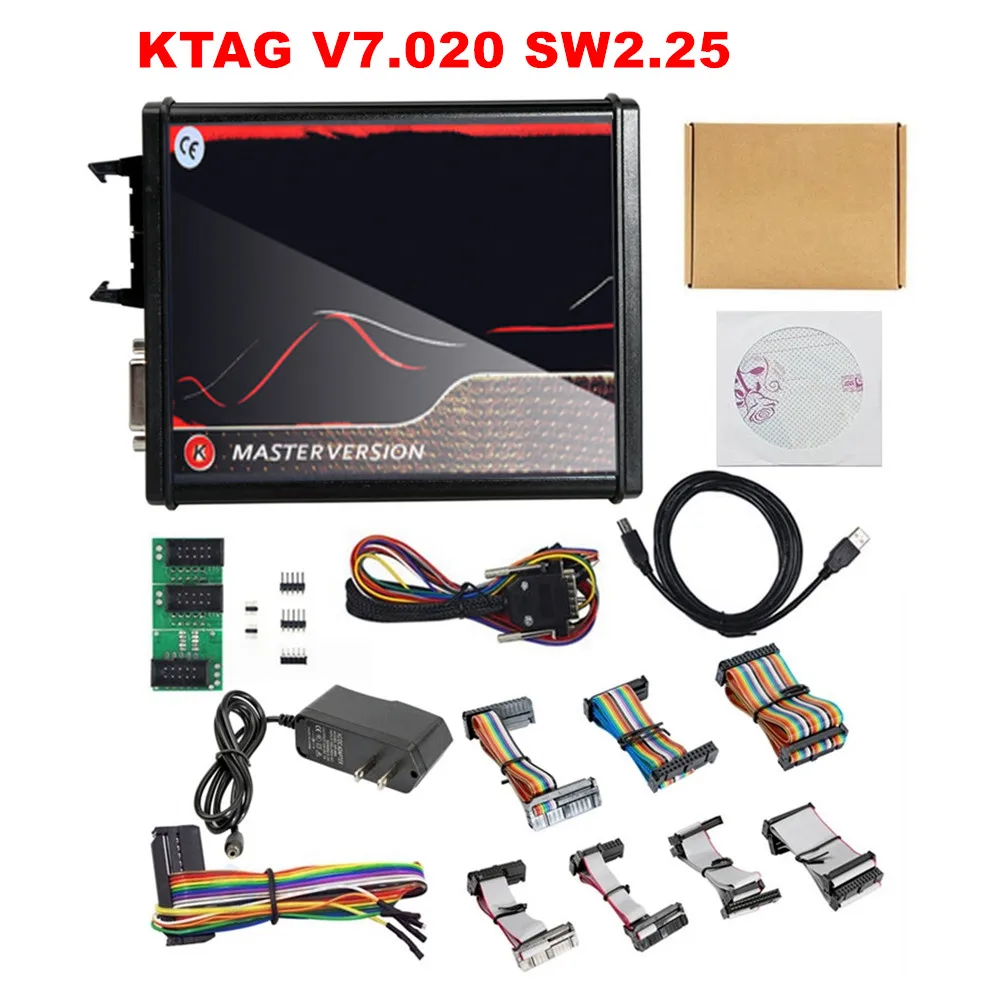

• KTAG V7.020 V2.25 with 4LED — Online-ready, unlimited usage, supports cars/trucks/tractors/motorcycles/boats with 12V/24V. Multi-language support and a hardware display designed to guide you through complex ECU procedures. The EU red PCB board and updated transistor set (Infineon, ON Semiconductor, NXP) enable more reliable diagnostics and tuning workflows.

Practical usage tips and best practices

• Avoid online firmware updates as advised by the manufacturer. Online updates can risk damage to the unit and may render it unusable.
• Disable antivirus during software operation to prevent false positives from interrupting the tuning process.
• Power considerations — The package includes a US plug power adapter. If you’re operating in a different region, use an appropriate power adaptor or source to ensure stable power during ECU read/write operations.
• Storage and backups — Keep a backup of your SD Card data and maintain a clean, organized workbench with labeled cables for TRICORE/BDM workflows.
• Match cables to your targets — Use the dedicated TRICORE/BDM cables for KTAG mode and the standard OBD2 interface for KESS mode. The software will guide you through the correct path for each ECU.

Who should consider this setup

• Professional tuners and independent workshop technicians who service a mix of cars, trucks, tractors, motorcycles, and boats.
• Technicians who need reliable 12V/24V coverage and deeper ECU access for complex ECUs that require TRICORE/BDM approaches.
• Shop owners seeking an “unlimited” tuning workflow with clear status indication via a four-LED display for faster project turnover.

Why this kit is a smart investment

The KESS V2.80 EU Red and KTAG V7.020 pairing offers a rare combination of accessible OBD2 tuning alongside advanced ECU programming modes. That means you get immediate, user-friendly adjustments for everyday vehicles and the ability to tackle heavier, more intricate ECUs for trucks, tractors, and other heavy equipment. The premium red PCB build, trusted semiconductor components, and a transparent, practical interface help you deliver precise results with fewer re-flows or guesswork. It’s not just about reading and writing codes—it’s about reliable, repeatable tuning outcomes you can stand behind when customers demand performance and safety.

Note: This system is designed for professional use. Follow the included guidelines and use the correct cables for each mode. If you’re transitioning from a primarily OBD2 setup to a broader TRICORE/BDM workflow, this kit provides a clear upgrade path without forcing you to abandon your existing tools.

Ready to elevate your tuning capabilities with a proven, feature-rich solution? Choose the KESS V2.80 EU Red KTag V7.020 Master for a robust, versatile, and market-ready ECU programming experience.
